Natural Gas Reforming Catalyst

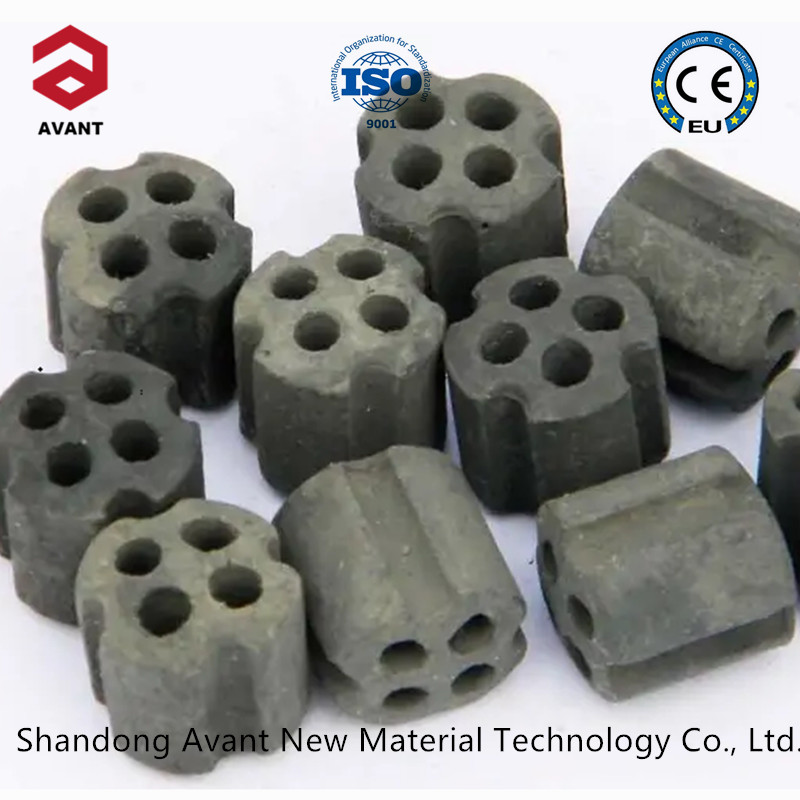

1.Natural gas reforming catalyst shape of 4-hole cylinder with dome provides it with large external geometric surface area, higher porosity, lower pressure drop, and better gas flow distribution etc..

2.Excellent reducibility: through self- circulation reduction, natural gas feedstock can be directly introduced into the reformer without extra activation in advance.

3.Suitable for pre- reforming combined with reforming process.

Inquire Now Next Product

Product introduction

1.Natural gas reforming catalyst is used in steam reforming process to produce hydrogen, ammonia synthesis gas, methanol synthesis gas, oxo- synthesis gas, carbon monoxide with gaseous hydrocarbon feedstock.

2.Adapt to natural gas, oil field associated gas and other gaseous hydrocarbon feedstock, which can be used alone or in combination.

3.Suitable for various types of tubular reformers with top-fired, side-fired or bottom- firebox, AMC-Z-412Q should be loaded in the upper section of the reformer tubes in combination while AMC-Z-413Q which is loaded in the lower section.

4.AMC-Z-413Q natural gas reforming catalyst can be used alone for the whole tube loading.

5.Excellent reforming activity, the proprietary carrier modification technique makes active components more firmly bound to the support, leading to better catalysts stability in both activity and structure.

6.Patented product and awarded the National Prize for Science and Technology Progress.

7.Excellent anti-poisoning and regeneration properties: can be self- renewal by optimizing operation conditions when sightly poisoned by sulfur or chlorine, while in-situ regeneration can be performed when poisoned seriously.

Product Basic Info

Operating conditions of natural gas reforming catalyst:

Item	Hydrogen	Ammonia syngas	Methanol syngas	Oxo- syngas
Inlet temperature/℃	450-650	450-650	450-650	450-650
Outlet temperature/℃	700-900	650-850	800-980	800-980
Pressure/MPa	Atmospheric-6.0	Atmospheric-6.0	Atmospheric-6.0	Atmospheric-6.0
Steam/carbon ratio	≥2.7	≥2.7	≥2.5	≥1.5
Carbon space velocity/h^-1	500-2000	500-2000	500-2000	500-2000
Feedstock	Natural gas, oil field associated gas and other gaseous

Product Specification

Physical and chemical properties of natural gas reforming catalyst:

Item	AMC-Z-412Q	AMC-Z-413Q
Color and shape	Black grey 4-hole cylinder with dome	Tile green 4-hole cylinder with dome
Size/mm	Φ16φ48~10	Φ16φ415~17
Active component	Ni	Ni
Bulk density/(kg.L^-1)	0.90-1.00	0.90-1.00
Side crushing strength/(N.granula^-1)	≥200	≥300
