Ammonia Synthesis Catalyst

Producing ammonia with lower cost and high yield is very important requirement of our customers. It is close to the highest great magnetic resource, which is the key factor of reducing production cost. With the great formula and professional team, our ammonia synthesis catalyst can produce 1% more ammonia than the same kinds after checking.

Inquire Now Next Product

Product introduction

Developed based on AMC-AH-201,AMC-AH-202 is the latest innovation ammonia synthesis catalyst with high activity and wide temperature range performance.

AMC-AH-202-H is a kind of pre-reduction catalyst based on AMC-AH-202, produced by the best equipment which has the great reducing condition and excellent technology.

Application:

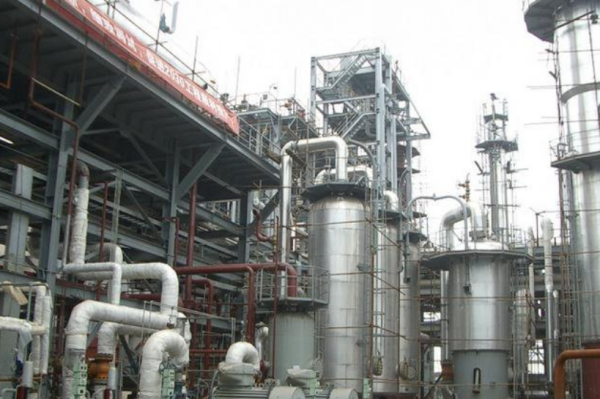

①　Ammonia synthesis catalyst is mainly used in chemical fertilizer industry in ammonia synthesis.

②　Ammonia catalyst can also be applied in metallurgy, vacuum tube industry. Ammonia is decomposed into pure nitrogen and hydrogen.

Ammonia Synthesis Catalyst

Product Basic Info

Physical Performance of Ammonia Synthesis Catalyst

Items	Units	AMC-AH-202	AMC-AH-202-H

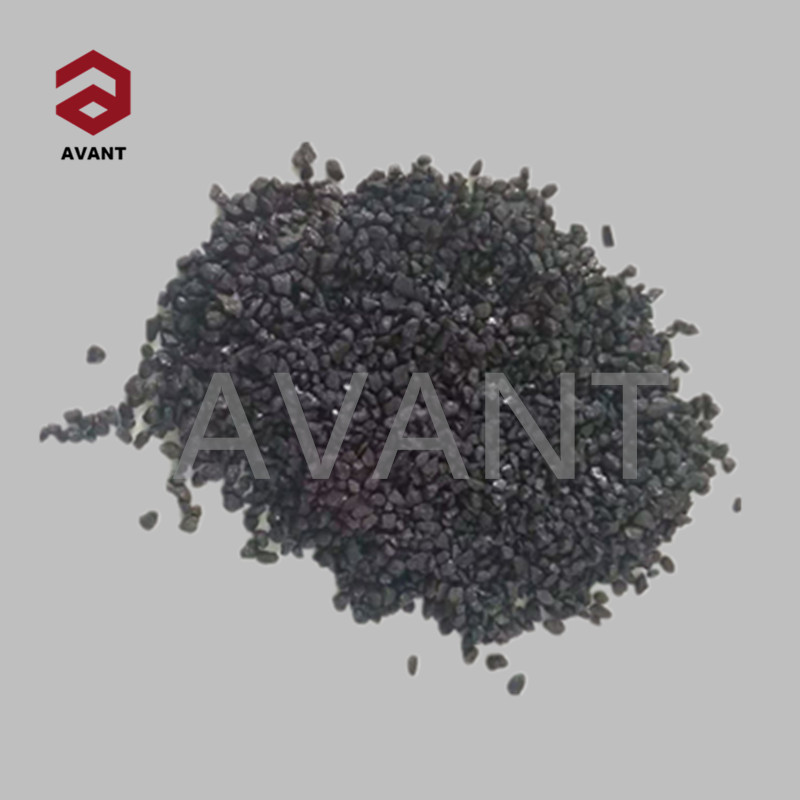

Appearance		Black with Metal Luster, Magnetic Solid Particle without fixed shape	Silver Gray with Metal Luster, Magnetic Solid Particle without fixed shape
Particle Size	mm	1.5～3.0 , 2.2～3.3, 3.3～4.7, 4.7～6.7, 6.7～9.4, 9.4～13.0 etc.
Bulk density	Kg/l	2.8～3.2	2.4～2.6
Particle Density	Kg/l	3.8～4.2	2.8～3.2
Skeletal Density	Kg/l	7.2～7.6	7.2～7.6
Specific Surface	m2/g	～15.18	～15.18
Porosity	%	～45	～45
Shape Coefficient	φs	Large Particle Catalyst 0.40~0.50 Small Particle Catalyst 0.50~0.60

Product Specification

Reduction Performance and Qualification of Ammonia Synthesis Catalyst

Catalyst type	AMC-AH202-H	AMC-AH202
Initial reduction temperature ℃	200±20	270
Obvious out of water Temperature	300～380	320～410
A large number of water temperature	400～440	420～460
The final reduction temperature ℃	490～500	490～500
Reducing gas	Hydrogen and nitrogen	Hydrogen and nitrogen
Reducing the amount of CO + CO2 gas	≤10ppm	≤10ppm
When reducing tower into the water vapor content	<100ppm	<100ppm
Reducing pressure	8～12MPa	8～12MPa	According to the requirements of different reduction level
Cl content in reducing gas	<0.01ppm
Reduction of H2S content in gas	<0.1ppm
Other requirements in the reducing gas	Harmful material such as arsenic, dust, oil, should be strictly controlled, the lower the better
