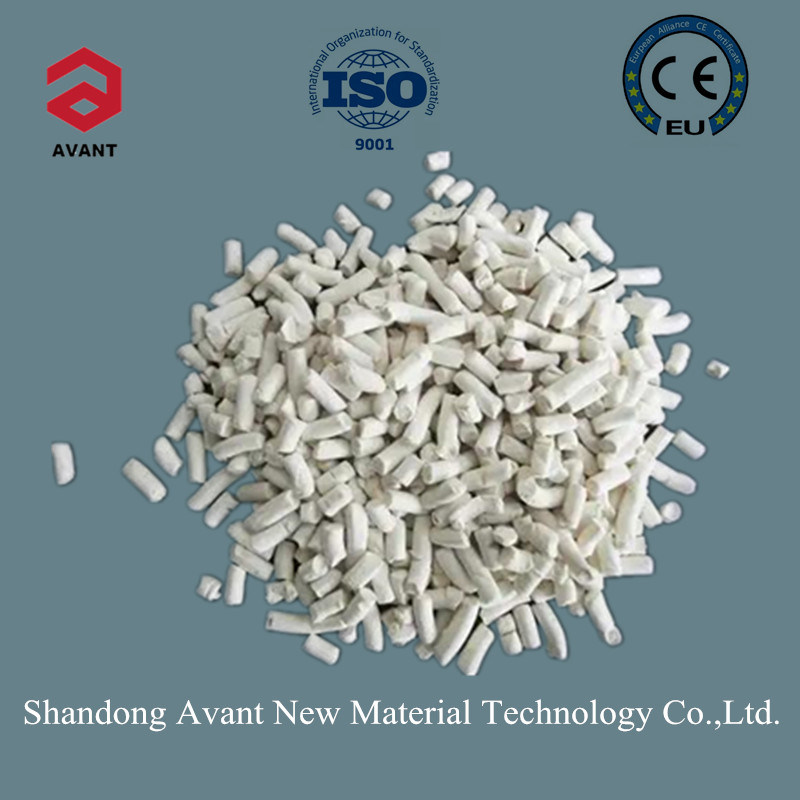

Low Temperature Light Hydrocarbon Isomerization Catalyst

1. C4 C5 C6 Low temperature light hydrocarbon isomerization catalyst is prepared by using precious metal Pt supported on alumina chloride carrier

2.It has the advantages of high isomerization activity, good isomerization selectivity, low reaction temperature and long service life

3. The C4, C5 and C6 n-paraffins can be converted into corresponding high-octane isoparaffins in a composition ratio close to the thermodynamic equilibrium.

Inquire Now Next Product

Product introduction

C4 / C5 / C6 low temperature light hydrocarbon isomerization catalyst at low temperature using precious metal Pt load on the chloride alumina carrier preparation, has high isomerization activity, good isomerization selectivity, low reaction temperature, long life and other advantages, can be close to the thermodynamic equilibrium composition, adding higher octane isomerization alkane.

Characteristics:

C4/C5/C6 low temperature light hydrocarbon isomerization catalyst with High Performance operation to iso-paraffins

Maximum isomerate octane at equivalent catalyst loadings, C4/C5/C6 Catalyst can process C, Cs, and C, feeds with all high benzene and C substance.

Volumetric yields usual exceed 99 lv-% High metal dispersion

Saturates benzene

Upgraded benefits for use in Penex process units Converts from normal to high hydrocarbons.

Product Basic Info

During the primary and secondary processing of crude oil, light hydrocarbon fractions with C5/C6 as the main components will be produced. The C4/C5/C6 light hydrocarbon fraction mainly includes light naphtha and raffinate from aromatics extraction.

Among these components, C5/C6 are mainly n-paraffins, and the overall octane number is low, and the isoparaffins with higher octane number are obtained after being processed by the isomerization unit. The octane number can be increased by 30-40 units after the isomerization of C5 alkanes, and the octane number can be increased by 50-70 units after the isomerization of C6 alkanes.

It can be seen that isomerized oil with high octane number can be obtained by isomerizing C5/C6 n-paraffins, which is one of the economical and effective preparation methods for gasoline blending components.

Product Specification

Physical properties & Activity Indicators:

No.	Item.	Numeric Value.
1.	Shape	Cylindrical Bar
2.	Diameter, mm	Φ 1.6±0.2
3.	Crushing Strength, N/cm	70
4.	Pt, %	0.24
5.	Sock Loaded ABD, lb/ft	49
6.	Dense Loaded ABD, lb/ft Metals	54

Service Conditions:

No.	Item.	Numeric Value.
1.	Reaction Temperature(Initial Temperature), ℃	130
2.	Reaction Temperature(Late Temperature), ℃	170
3.	Reaction Pressure, MPa	2.8~3.5
4.	WHSV, N/cm	1.5~2.0
