Sulfur Tolerant Shift Catalysts for CO shift process with coal

1)High-mid pressure, wide temperature range and wide water/gas ratio sulfur tolerant shift process.

2)High pressure and low water/gas ratio sulfur tolerant shift process.

3)High pressure, high temperature range, high water/gas ratio and low sulfur content sulfur tolerant shift process.

4)AMC-NB-03X is suitable for axial-radial reactor.

Inquire Now Next Product

Product introduction

1) Co-Mo/TiO₂-MgO-Al₂O₃ based sulfur tolerant shift catalyst with TiO2 improved dispersion and sulfiding performance of active components Co-Mo, as well as catalyst shift activity under the conditions of low temperature and low sulfur content.

2) The additives of blended rare earth improve the activity and stability , as well as inhibit the side reactions of methanation and F-T synthesis.

3) High mechanical strength, strong resistance to poison and long service life.

4) Excellent adaptability to high space velocity and high water/gas ratio, good operating flexibility; good hydration resistance; high mechanical strength; strong resistance to poison and long service life.

5) Excellent performance of organic sulfur hydrogenolysis and cyanide removal.

6) Patented product and awarded the National Prize for Science and Technology Progress.

Product Basic Info

Operating Conditions:

Temperature/℃	200~500
Pressure/MPa	2.0~10.0
Space Velocity(dry based)/h^-1	1000~6000
Water gas ratio	0.2~1.8
Sulfur content in process gas,%(v)	≥0.01

Product Specification

Item	AMC-NB-03	AMC-NB-03X

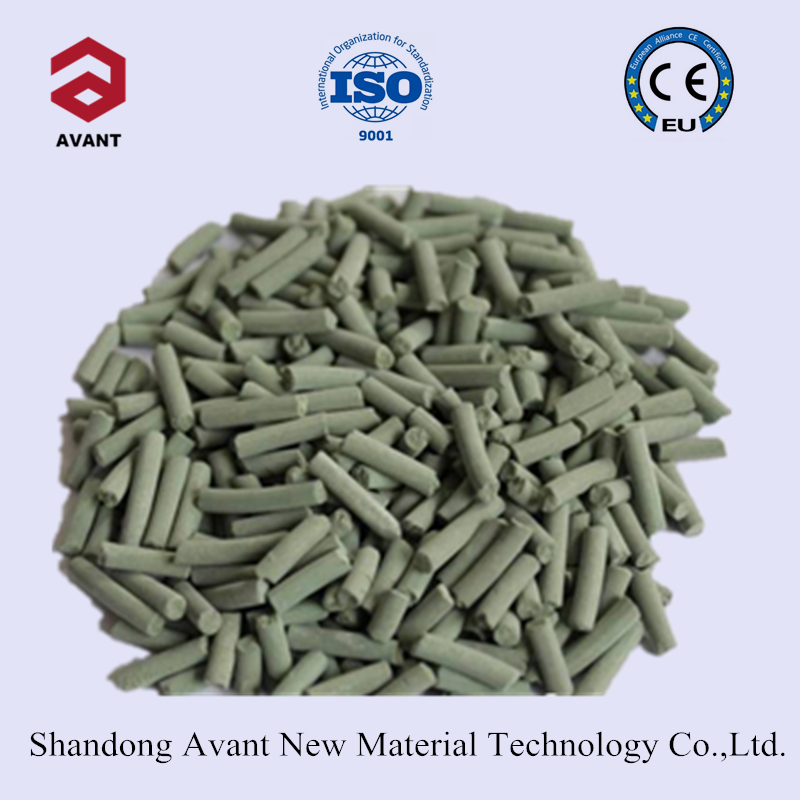

Color and shape	Sage green extrudate	Blue-green sphere
Size/mm	Φ3.5~4.0	Φ2.5~3.0
Active components	Co-Mo	Co-Mo
Bulk density/(kg·L^-1)	0.78~0.88	0.85~0.95
Crushing strength(N·cm^-1)	≥130	≥110
Additives	Rare earth
Carrier	TiO₂-MgO-Al₂O₃
