Sulfur Recovery Catalysts

1)Used in Claus reaction sulfur recovery unit petroleum refining, petrochemical and coal chemical industry.

2)Suitable for various concentrations of hydrogen sulfide and process conditions, can be whole bed loaded in any stage of Claus reactor or be used in combination with other type and function of catalysts by grading load.

3)When used in grading load, the O₂scavenging protectant catalyst, AMC-LS-971, is loaded in the upper part of convertor, while alumina-based catalyst AMC-LS-02 or AMC-LS-300 is loaded in the bottom of convertor.

4)Suitable for CBA sulfur recovery process either.

Inquire Now Next Product

Product introduction

1) AMC-LS-02 and AMC-LS-300 are Al₂O₃ sulfur recovery catalysts with large specific surface area and high Claus activity; their bimodal distribution in pore structure is favorable to the diffusion of process gas and the Cluas reaction; both have uniform particle size, high strength, stable structure, good stability in activity and long service life.

2) AMC-LS-971 is sulfur recovery catalyst with dual functions of high Claus activity and O2 scavenging, loaded in the upper part of reactor when used with Al2O3-based catalyst, effectively protecting the lower part of Al2O3 catalyst, avoiding the sulfation of Al2O3 based catalyst caused by“leaked O2” in process gas and ensuring long service life of the sulfur recovery catalysts.

Product Basic Info

Operating Conditions:

Temperature/℃	200~350
Pressure/MPa	~0.2
Space Velocity/h^-1	200~1000

Product Specification

Item	AMC-LS-02	AMC-LS-300	AMC-LS-971

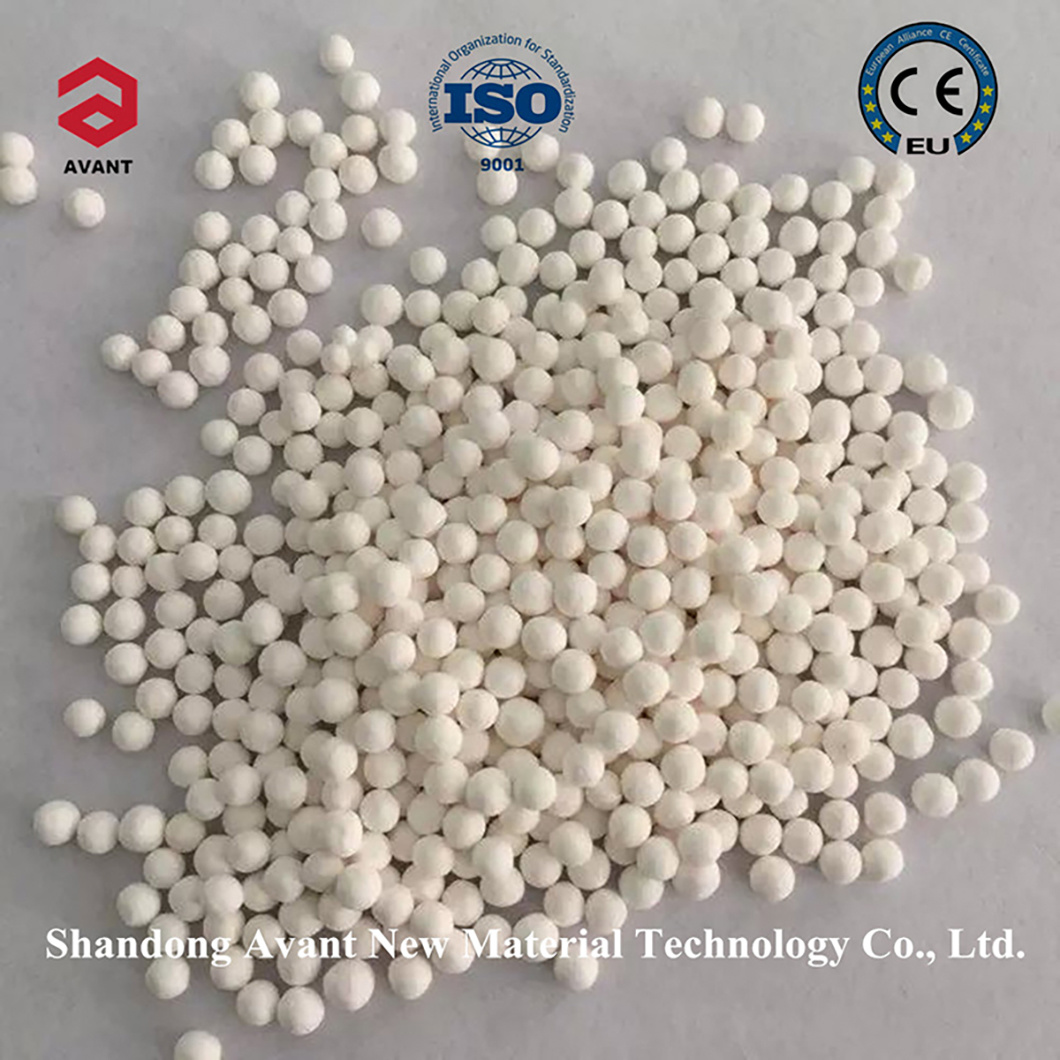

Color and shape	White spherical	White spherical	Reddish-brown spherical
Size/mm	Φ4~6	Φ4~6	Φ4~6
Compositions	Al₂O₃	Al₂O₃	Al₂O₃+Assistant
Specific surface area/(m²·g^-1)	≥350	≥300	≥260
Bulk density/(kg·L^-1)	0.60~0.70	0.65~0.75	0.70~0.85
Crushing strength/(N·granula^-1)	≥120	≥140	≥130
