1) Reasonable pore structure, removing and absorbing impurities or poisons such as ashes and tar in the feed gas with high capture capacity.
2) Excellent adaptability to high space velocity, good operating flexibility; good hydration resistance; high mechanical strength.
3) Exhibiting certain degree of shift activity, prolonging service lift of the major catalyst.
Suitable for sulfur tolerant shift process in which the gases are generated by coal gasification process, removing and absorbing impurities or poisons such as ashes and tar in the feed gas, and simultaneously exhibiting certain degree of shift activity.
Operating Conditions:
Temperature/℃ | 200~500 |
Pressure/MPa | 1.0~8.0 |
Space Velocity(dry based)/h-1 | 3000~10000 |
Water gas ratio | 0.3~1.6 |
Sulfur content in process gas,%(v) | ≥0.01 |
Item | AMC-BH-01 |

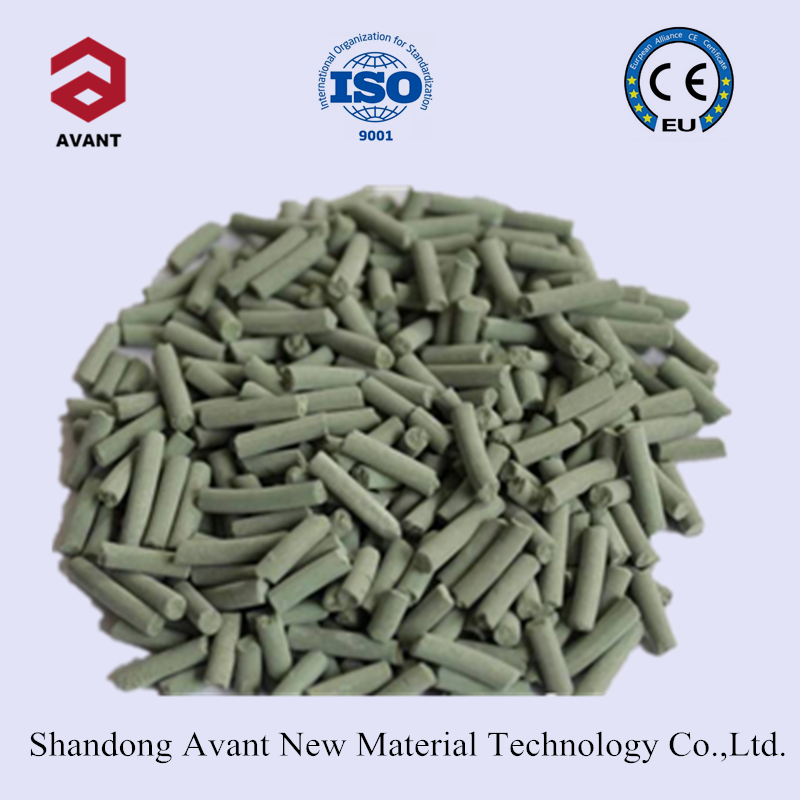

Color and shape | Sage green extrudate |
Size/mm | Φ3.5~4.0 |
Active components | Co-Mo |
Bulk density/(kg·L-1) | 0.90~1.10 |
Crushing strength | ≥120 |
Carrier | TiO2-MgO-Al2O3 |
