1. Used in steam reforming process of hydrocarbons to produce hydrogen, ammonia synthesis gas, methanol synthesis gas, oxo- synthesis gas, carbon monoxide etc..
2. Suitable for hydrocarbon feedstock, such as light hydrocarbons, refinery off-gas, natural gas etc., which can be used alone or in combination.
3. Suitable for various types of tubular reformers with top-fired, side-fired, bottom- firebox or other configurations such as heat exchanger etc., AMC-Z-301 should be loaded in the upper section of the reformer tubes, while AMC-Z-302 loaded in the lower part.
1.Excellent hydrocarbon steam reforming activity, anti-carbon performance and structure stability.
2.The catalyst shape of 4-hole cylinder with dome provides it with large external geometric surface area, higher porosity, lower pressure drop, and better gas flow distribution etc..
3.Versatile catalyst options for various hydrocarbon feedstock such as light hydrocarbon, refinery gas or natural gas used alone or combination. Switching or dosage adjustment of feeds does not affect the normal use of catalyst.
4.Excellent reducibility: through self- circulation reduction, natural gas feedstock can be directly introduced into the reformer without extra activation in advance.
5.Excellent anti-poisoning and regeneration properties: can be self- renewal by optimizing operation conditions when sightly poisoned by sulfur or chlorine, while in-situ regeneration can be performed when poisoned seriously.
6.Suitable for steam reforming process with or without pre- reformer, even for pre- reformer switching on/off cases.
Operating conditions
Item | Hydrogen | Ammonia syngas | Methanol syngas | Oxo- syngas |
Inlet temperature/℃ | 450-650 | 450-650 | 450-650 | 450-650 |
Outlet temperature/℃ | 700-900 | 650-850 | 800-980 | 800-980 |
Pressure/MPa | Atmospheric-6.0 | Atmospheric-6.0 | Atmospheric-6.0 | Atmospheric-6.0 |
Steam/carbon ratio | ≥2.7 | ≥2.7 | ≥2.5 | ≥1.5 |
Carbon space velocity/h-1 | 500-2000 | 500-2000 | 500-2000 | 500-2000 |
Feedstock | Hydrocarbons such as light hydrocarbons, refinery gas, natural gas | |||
Item | AMC-Z-301 | AMC-Z-302 |

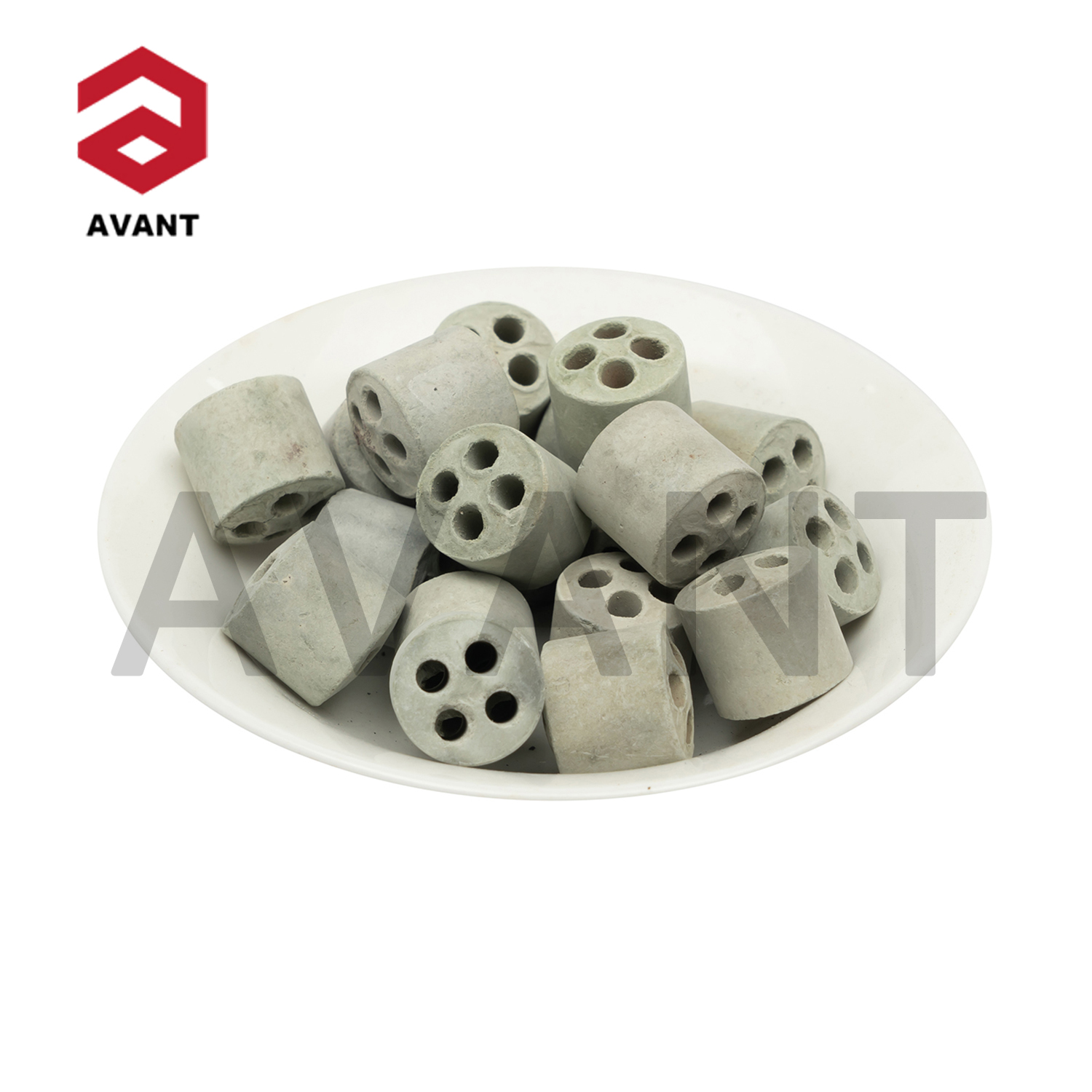

Color and shape | Black grey 4-hole cylinder with dome | Tile green 4-hole cylinder with dome |
Size/mm | Φ16*φ4*8~10 | Φ16*φ4*15~17 |
Active component | Ni | Ni |
Bulk density/(kg.L-1) | 0.95-1.10 | 0.095-1.05 |
Side crushing strength/(N.granula-1) | ≥200 | ≥300 |
Additives | Composite alkaline substances | Aluminum based dispersant |
