1. Widly used in refinery hydrotreating, coal chemical etc., field. Packed at the top of catalyst beds by grading loading, they provide larger pore volume (including interior and interface void volume), effectively removing/accommodating machanical impurities from raw material, which inhibits the rise of catalyst pressure drop and extends the operating cycle.
Features:
1. Large porosity and high dirt capture ability.
2. High strength, good chemical stability and impact resistance.
Operating conditions:
Operating temperature/℃ | Room temperature ~600 |
Pressure/MPa | ≤30 |
Physico-chemical properties:
Item | AMC-BH-02 | AMC-BH-04 |

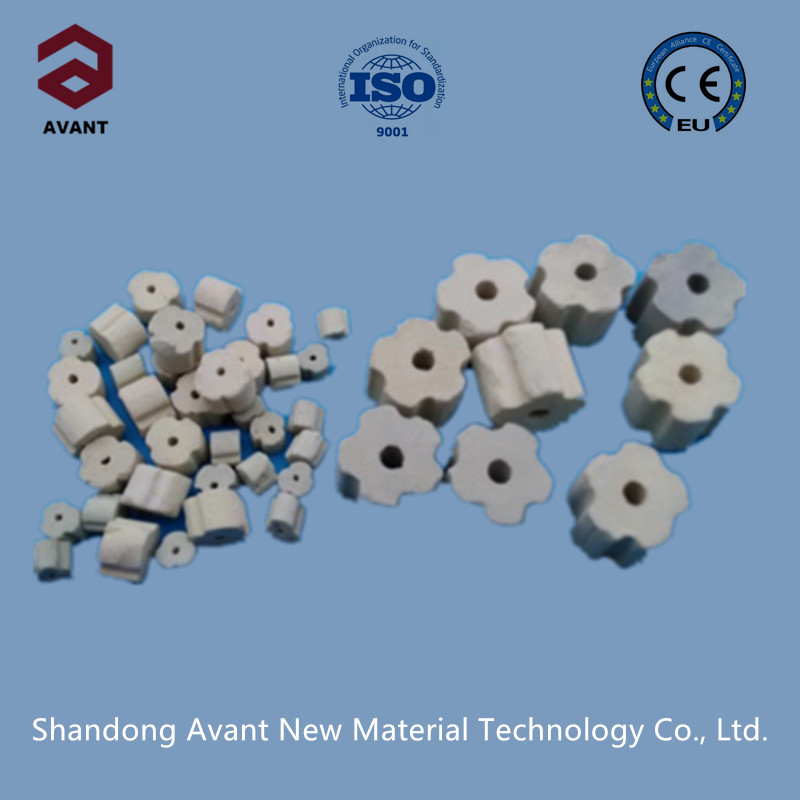

Color and shape | White, Raschig ring | White, spoke ring |
Size/mm | φ10×φ5×10 | φ16×7 |
Compositions | Al2O3 | Al2O3 |
Porosity,%(v) | ≥45 | ≥50 |
Bulk density/(kg.L-1) | 0.85~1.00 | 0.85~1.00 |
Crushing strength/(N.cm-1) | ≥180 | ≥300 |
